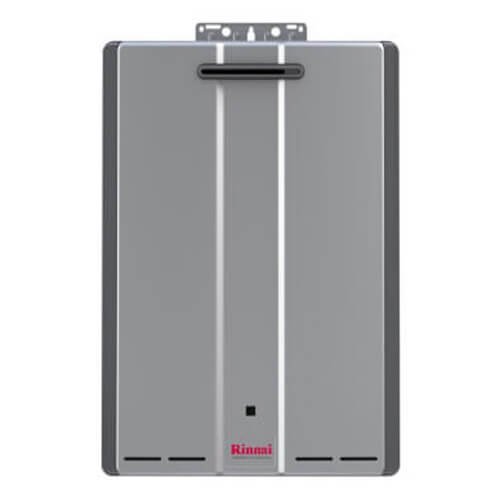

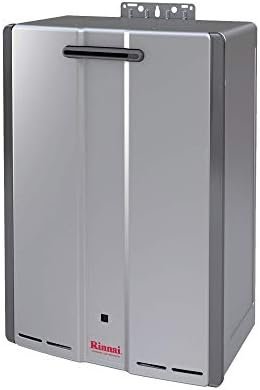

Rinnai RUR199EN Sensei Natural Gas Tankless Water Heater 199000 BTU/Hour

Product Description

The Rinnai RUR199EN Sensei tankless water heater is designed for residential, outdoor use. This natural gas water heater features an inlet/outlet connection of 3/4 Inch Threaded x 3/4 Inch Threaded and a gas input supply rating of 15000 to 199000 BTU/Hour. It operates on a 120 Volt AC at 60 Hertz, 12 Volt DC electrical input supply.

• Offers automatic frost protection and boiling protection.
• Includes an integrated controller and water flow sensor.
• Features direct electronic ignition and complies with ANSI Z21.10.3, CSA 4.3, and AHRI standards.

Product Highlights

The Rinnai Sensei tankless water heater provides on-demand hot water with energy-saving features and a compact design, ideal for residential use.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RUR199EN
• Country of Origin: USA

Technical Specifications

• Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
• Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 81 Watt
• Energy Saver Conformance: Yes
• Gas Input Supply Rating: 15000 to 199000 BTU/Hour
• Gas Type: Natural Gas
• Ignition Type: Direct Electronic
• Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, 22 AWG Non-Polarized 2-Core Cable, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
• Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
• Options: Condensate Neutralizer, ScaleCutter, Drain Down Kit, Additional Controller, Recess Box, Pipe Cover, Recirculation Pump, DPS/MIS Switch, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessory, Room Air Screen
• Relief Valve Details: Isolation and Pressure Relief Valve Supplied
• Temperature Rating: 98 to 140 Deg F
• Type: Residential, Outdoor
• Brand: Rinnai
• Series/Model: RUR199
• Energy Factor: 0.95
• Pressure Rating: 50 to 150 PSI
• Flow Rating: 9.8 GPM
• Sound Level: 53 Decibel
• Max. BtuH Input: 199,000
• Min. BtuH Input: 15,000
• ENERGY STAR® Qualified: Yes
• Wifi Capable: Yes
• Product Type: Tankless Heater
• Installation Type: Outdoor Only
• Fuel Type: Natural Gas
• Energy Star Rated: Yes
• BTU (Max): 199000
• BTU (Min): 15000
• BTU Input: 199000
• Temperature Range (F): 98°F to 140°F
• Flow Range (GPM): 0.26 – 9.8
• Voltage: 120V
• Gas Connection: 3/4″
• Hot Water Outlet (NPTF): 3/4″
• Cold Water Inlet (NPTM): 3/4″
• Warranty: 15 Year Ltd. Heat Exchanger/ 5 Year Ltd. Parts/ 1 Year Ltd. Labor
• Features: Wifi
• AHRI Certified: Yes
• CSA 4.3 Certified: Yes
• Flow Rate at 70F Temp Rise (GPM): 5.5
• Flow Rate at 40F Temp Rise (GPM): 9.8
• Flow Rate at 60F Temp Rise (GPM): 6.4
• Flow Rate at 50F Temp Rise (GPM): 7.6
• Application: Residential
• Power source: Natural Gas
• Special feature: Tankless Water Heater, Endless Supply of Hot Water, Space-saving design, Smart-Circ Intelligent Recirculation (select models), Wi-Fi Ready (select models)
• Material: Stainless Steel Copper
• Installation Method: Wall Mounted
• Flow Rate: 11 Gallons Per Minute
• Mounting Type: Wall
• Included Components: Water Heater
• Batteries Included?: No
• Batteries Required?: No
• End Connection: NPT x NPT
• End Connection 1: NPT
• End Connection 2: NPT
• Energy Star Compliant: Yes
• Ignition System: Electronic
• Lead Law Compliant: Yes
• Maximum Temperature: 140F
• MBH: 15
• Power Source: Gas
• Pressure – Maximum: 300 psi
• Specifications – NSF Certified: No
• Specifications – UL Listed: No
• Supply Pipe Connection Size: 3/4 in.
• Vent Type: Direct Vent
• Volts: 120V
• Specifications – CEC Compliant: Not for Sale in CA
• Depth (Inches): 11.4
• Width (Inches): 18.5
• Height (Inches): 26.4
