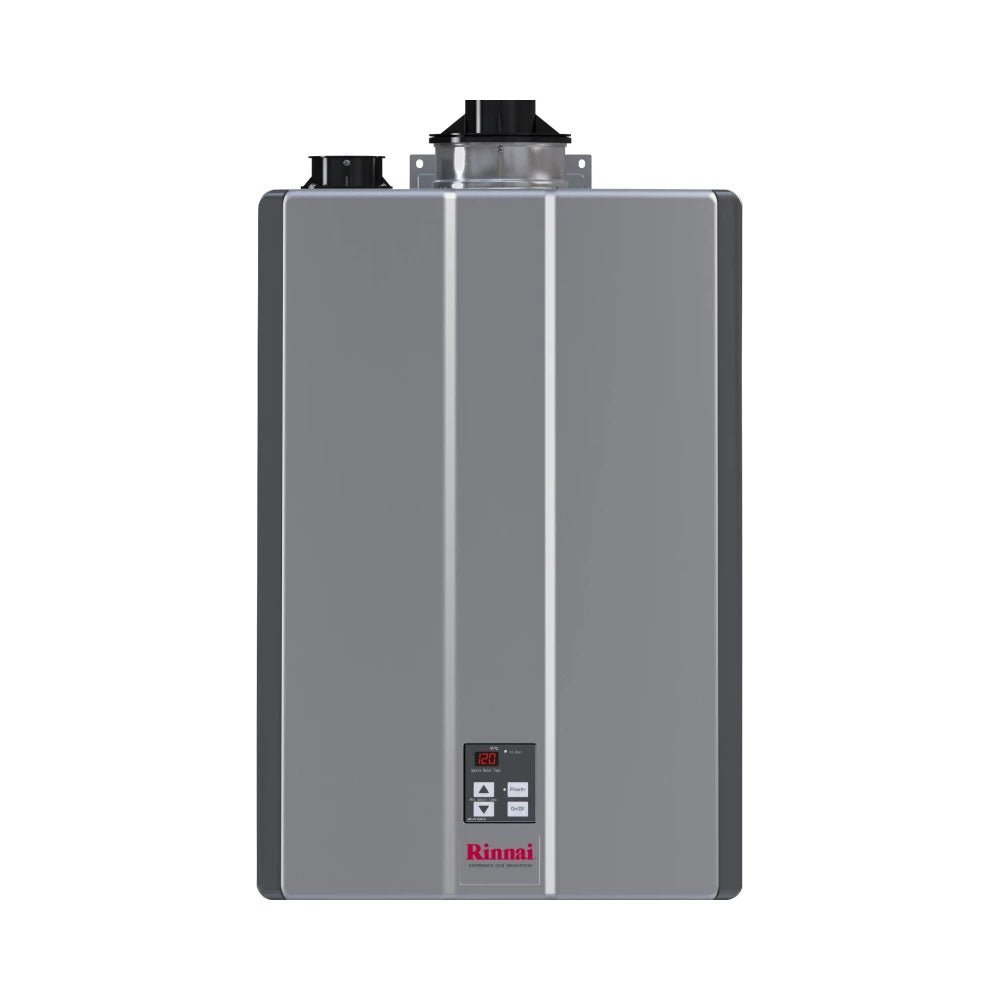

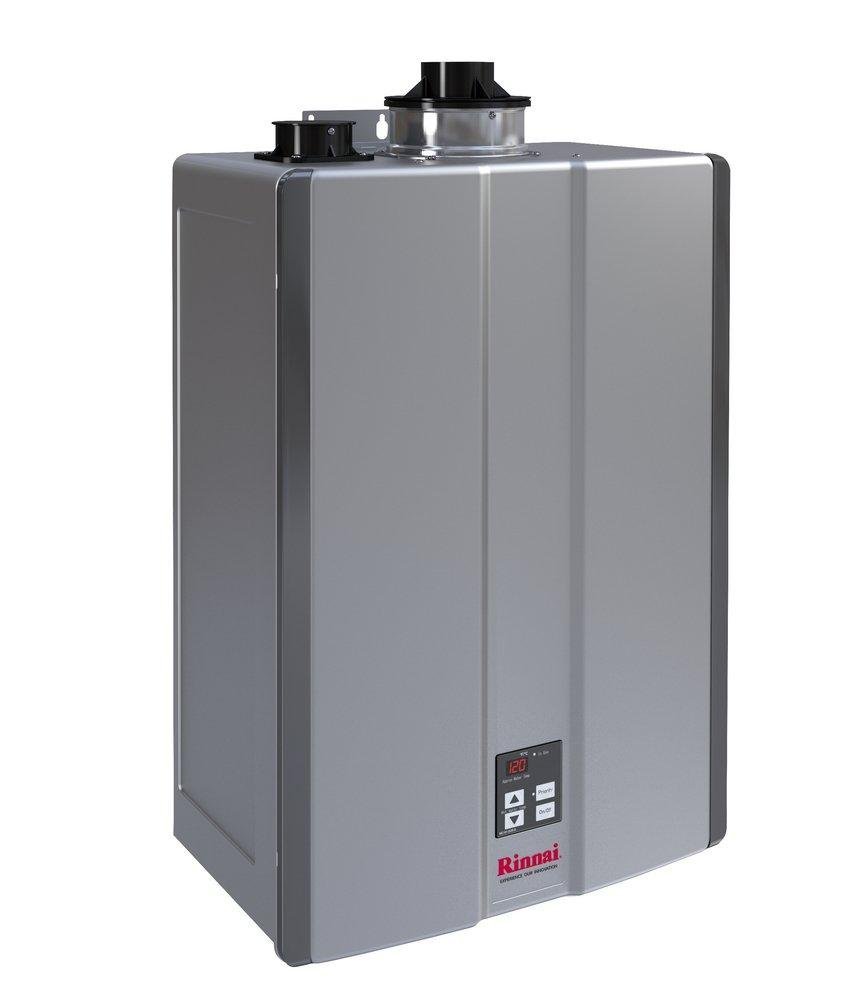

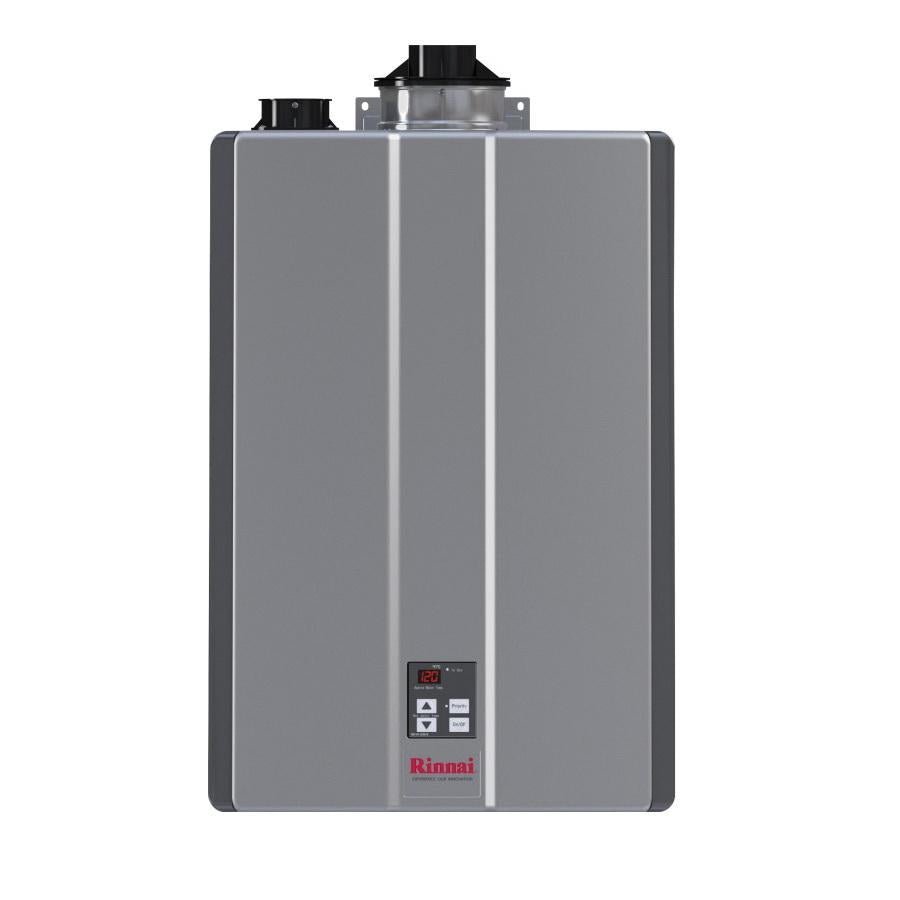

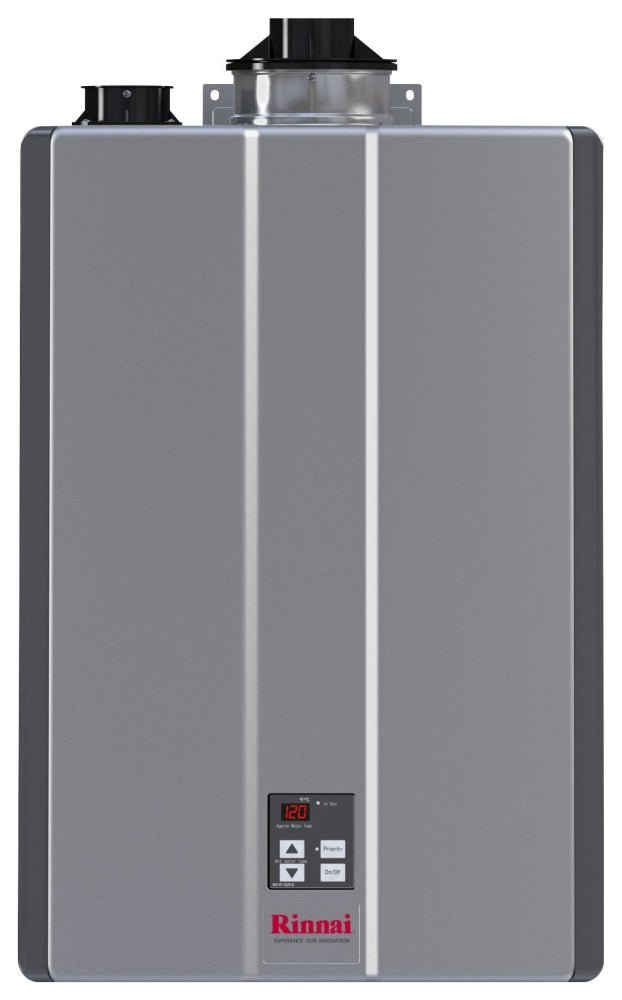

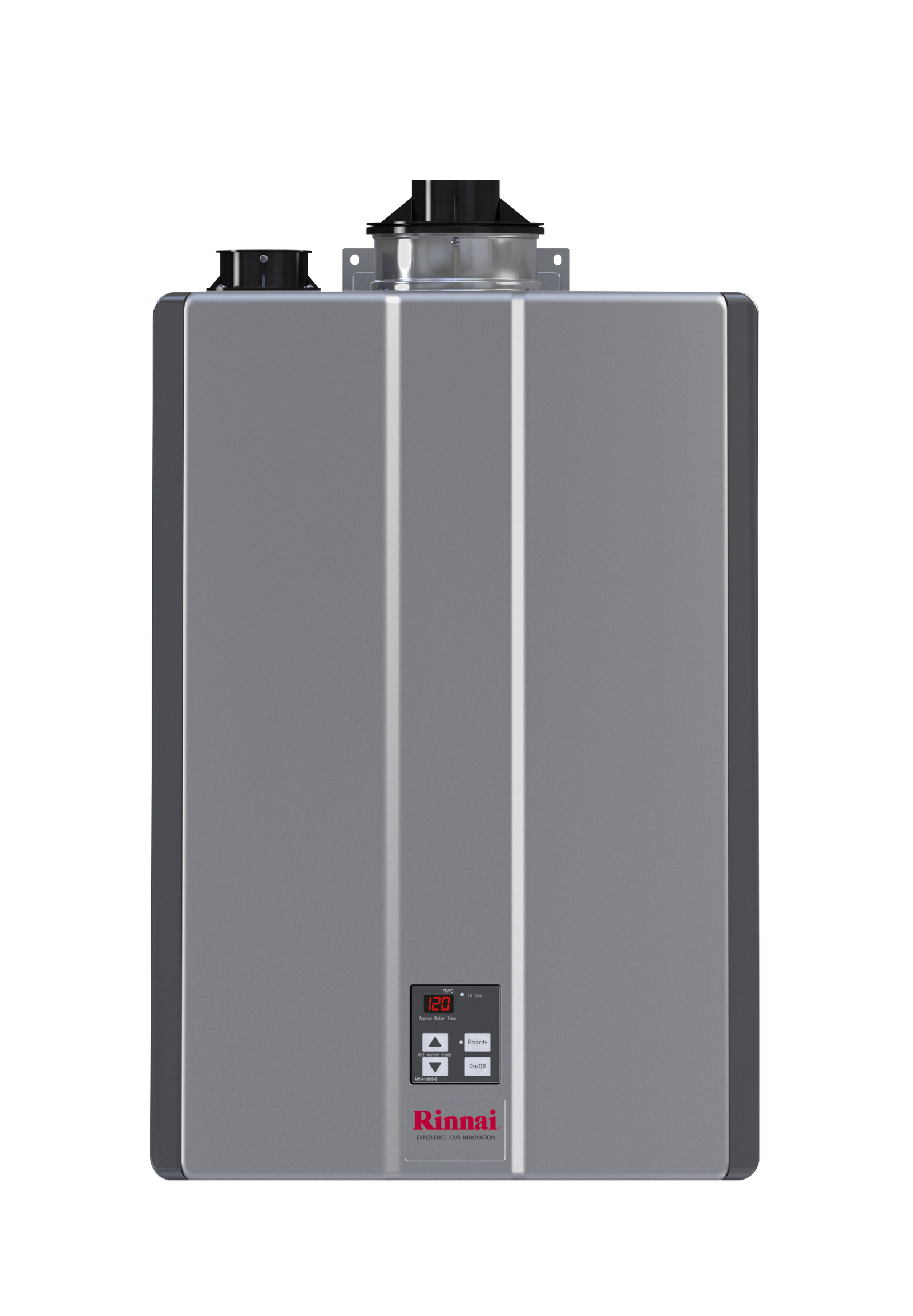

Rinnai RU180IN Tankless Water Heater 15000 to 180000 BTU/Hr 9 GPM
$504.63
The RINNAI RU180IN tankless water heater is designed for residential, indoor use with a gas input supply rating of 15000 to 180000 BTU/Hr. This natural gas unit features direct electronic ignition and operates at 120 VAC 60 Hz, 12 VDC, 4 A, and 65 W, with a flow rating of 9 GPM.
- ✓Free shipping, no minimum
- ✓30-day free returns, no restocking fee
- ✓Brand new, manufacturer warranty
- ✓Secure SSL-encrypted checkout
Product Description
The RINNAI RU180IN tankless water heater is designed for residential, indoor use with a gas input supply rating of 15000 to 180000 BTU/Hr. This natural gas unit features direct electronic ignition and operates at 120 VAC 60 Hz, 12 VDC, 4 A, and 65 W, with a flow rating of 9 GPM. It includes automatic frost protection and boiling protection.
- Easy of Installation and Serviceability
- Compact Design to Save Space
- Wi-Fi Technology for Remote Monitoring and Management
Product Highlights
This tankless water heater offers easy installation, a compact design, and Wi-Fi technology for remote monitoring.
Product Information
Standard Information
- Brand: RINNAI
- Manufacturer Part Number: RU180IN
- Country of Origin: Japan
Technical Specifications
- Type: Residential, Indoor
- Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
- Gas Type: Natural Gas
- Relief Valve Details: Isolation and Pressure Relief Valve Supplied
- Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 65 Watt
- Gas Input Supply Rating: 15000 to 180000 BTU/Hour
- Temperature Rating: 98 to 140 Deg F
- Ignition Type: Direct Electronic
- Energy Saver Conformance: Yes
- Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, 22 AWG Non-Polarized 2-Core Cable, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
- Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
- Pressure Rating: 50 to 150 psi
- Flow Rating: 9 GPM
- Sound Level: 47 Decibel
- Energy Factor: 0.95
- Voltage: 120 VAC
- Frequency: 60 Hz
- DC Voltage: 12 VDC
- Amperage: 4 A
- Wattage: 65 W
- GPM: 9
- Material: Lead-Free
- Fuel Type: Natural Gas
- Application: Residential, Indoor
- Product Type: Tankless Condensing Internal
- Series: Super High Efficiency Plus
- Mounting: Wall
- Standards: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
- Vent Type: Concentric, Twin Pipe, Room Air
- Temp. Range: 98-185 deg. F
- Gas Connection: 3/4″ MNPT
- Flow Rate (GPM): 0.26 to 10
- Additional Features: ENERGY STAR® Qualified with an Energy Factor of 0.95 / Uniform Energy Factor of 0.93
- Residential / Commercial: Residential / Commercial
- Country of Origin (subject to change): Japan
- Max. BtuH Input: 180,000
- Min. BtuH Input: 15,000
- Energy Star Qualified: Yes
- Wifi Capable: Yes
- Includes service valve kit: Yes
- Direct Vent: Yes
- Depth (Inches): 11.4″
- Width (Inches): 18-1/2″
- Height (Inches): 26.4″
- Flow Range (GPM): 0.26 – 9.0
- Energy Star Rated: Yes
- Installation Type: Indoor Only
- Temperature Range (F): 98°F to 120°F
- Cold Water Inlet (NPTM): 3/4″
- Hot Water Outlet (NPTF): 3/4″
- Flow Rate at 40F Temp Rise (GPM): 8.6
- Flow Rate at 50F Temp Rise (GPM): 6.9
- Flow Rate at 60F Temp Rise (GPM): 5.8
- Flow Rate at 70F Temp Rise (GPM): 4.9
- mobile home certified: yes
- natural gas connection: 3/4″
- install location: indoor
- wifi: yes
- 1/2″ natural gas line compatible: yes
- btu: 180k
- vent pipe diameter: 2″
- venting option: concentric, sch40 pvc/cpvc
- CONTROLLER (STANDARD): INTEGRATED
- CONTROLLERS (OPTIONAL): MC-195T-US, MC-91-2US, MCC-91-2US
- Minimum/Maximum BTU: 15,000 – 180,000 BTU
- Manufacturer Trade Model Number – U.S: RU180iN
- Product Depth: 11.45 in
- Product Width: 18.5 in
- Product Height: 31.3 in
- Recirculation Capable: Yes
- Residential ENERGY STAR: Yes
- Uniform Energy Factor: 0.93
- Domestic Hot Water Flow Rate (Maximum): 10 GPM
- SCAQMD Approved: Ultra Low NOx
- Altitude: 10200 ft
- Amperage Rating: 4 A
- BTU Rating: 15000 to 180000 Btu/hr
- Connection Type: NPT
- Dimensions: 31.3 in H x 18.5 in W x 11.45 in D
- Efficiency: 0.95 %
- Ignition System: Electronic
- Model: REU-N2934FF-US
- Mounting Type: Wall
- Power Rating: 65 W
- Standby Loss: 1.3 W
- Voltage Rating: 12/120 V
- Item Name: Condensing Tankless Water Heater
- Sub Brand: Sensei™
- Model No: RU
- Flow Rate: 0.26 – 10 gpm
- Activation GPM: 0.4 gpm
- Water Connection: 3/4 inch MNPT
- Vent Size: 3 inch, 1800 inch Maximum Run
- Applications: For Indoor Only
- Includes: Isolation Valve Kit
- Standards/Approvals: AHRI Certified, ANSI Z21.10.3, CSA Certified, Energy Star® Certified
- Minimum Activation Rate: 0.4 GPM (1.5 l/min)
- Hot Water Flow Rate Range: 0.26 – 9.0 GPM (1.0 – 34 l/min)
- Approved Gas Types: Natural Gas or Propane
- Flow rate: 70°/50° temp. rise: 4.9 / 6.9
